Brand: BXST

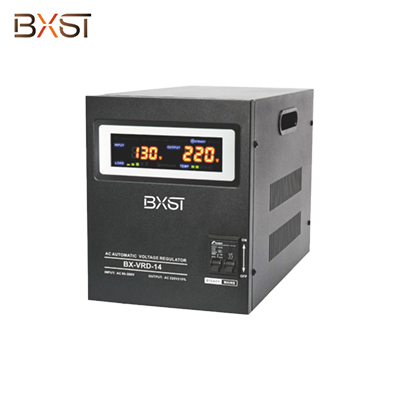

Model Number: BX-VRD14
Input Voltage : AC 130V-270V/95V-270V/95V-280V
Output Voltage AC 220V+/-10%
Delay Time : Short Delay: 3-5sec Long Delay : 3-7min
power: 3000/5000/8000/10000W
Display : LED Display
0086 18958987897
bxst025@bao-xiang.com
1.Product Feature
1. Relay control
2. Wide range voltage regulation
3. Technology: classis series, EI transformer, relay type
4. Automatic voltage regulation
5. 3 LED indicators for power, high voltage, low voltage
6. 8 output USA sockets
7. Waveform distortion: no additional waveform distortion
8. Insulation resistance≥2MΩ
2.Product Specification
|
BX-VRD14 |
|
|
Power |
3000/5000/8000/10000W |
|
Input voltage |
AC 130V-270V/95V-270V/95V-280V |
|
Input frequency |
50/60Hz |
|
Output voltage |
220V AC |
|
Output precision |
110V+/-10% |
|
Time delay |
Short Delay: 3-5sec Long Time : 3-7min |
|
Efficiency |
>90% |
|
Load power factor |
0.8 |
|
Phase |
single phase |
|
Operating temperature |
0-40℃ |
|
Storage temperature |
-15℃-45℃ |
|
Operating relative humidity |
10%RH-102%RH |
|
Customize option for specification and availability please contact BXST |
|
3.Dimension and weight
|
Model |
QTY/CTN |
MEAS(cm) |
G.W.(kg) |
N.W.(kg) |
Container20(PCS) |
|
BX-VRD14 |
12 |
49*28*29 |
17.4 |
16 |
8140 |
