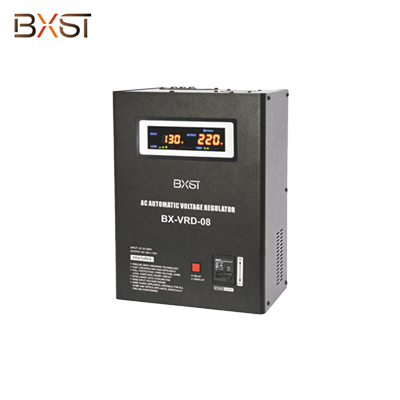

BX-VRD08 Stable High Voltage Regulator

BX-VRD08 Stable High Voltage Regulator

Brand: BXST
Model Number: BX-VRD08
Input voltage:AC 45V-270V/AC 60V-270V/AC 95V-270V
Input frequency:50/60Hz
Output voltage:220V AC
Transformer:copper/aluminum
Display:multifunctional LED meter
Time delay:3-5 short time,3-7 long time
Protection functions: over voltage, overload, over temperature, low voltage, time delay
Operating temperature:0~40℃
Storage temperature:-15℃~45℃
Operating Relative humidity:10%RH~102%RH
Features:
1. Relay/microprocessor control(CPU)
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type

The single-phase voltage regulator is composed of a contact type auto-regulator, a servo motor, and an automatic control circuit. The working principle is: when the grid voltage is unstable or the load changes, the automatic sampling control circuit sends out a signal and drives the servo motor to adjust the position of the auto-coupler carbon brush, so that the output voltage is adjusted to the rated value and reaches a steady state with overvoltage. , under voltage, overload, bypass, lightning protection and other protection functions and waveforms are not distorted, reliable performance, long-term operation and so on. It can ensure the normal operation of the electrical equipment.


1.Product Features

1.    Relay/microprocessor control(CPU)

2.    Wide range voltage regulation

3.    Technology: classis series, EI transformer or toroidal transformer, relay type

4.    Automatic voltage regulation

5.    Display: LED digital display

6.    Protection functions: overvoltage, overload, over temperature, low voltage, time delay

7.    Waveform distortion: no additional waveform distortion

8.    Dielectric strength: 1500V/1min

9.    Insulation resistance≥2MΩ


2.Product Specifications

BX-VRD08

Power

3000W

Input voltage

AC 45V-270V/AC 60V-270V/AC 95V/270V

Input frequency

50/60Hz

Output voltage

220V AC/110V AC

Output precision

220V+/-8%, 110V+/-10%

Time delay

3-5sec short time, 3-7min long time

Efficiency

>90%

Operating temperature

0-40℃

Storage temperature

-15℃-45℃

Operating relative humidity

10%RH-102%RH

Customize option for specification and availability please contact BXST


3.Dimension and weight


Model

QTY/CTN

MEAS(cm)

G.W.(kg)

N.W.(kg)

Container20(PCS)

BX-VRD08

4

68*31*23

15.66

14.6

2300
