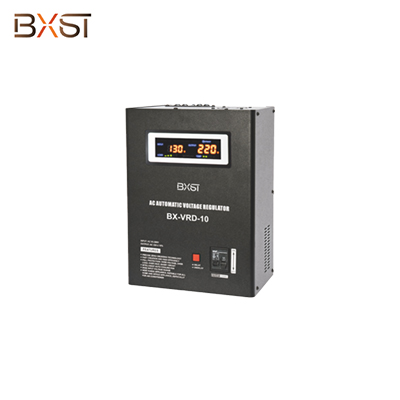

Brand: BXST
Model Number: BX-VRD10
servo motor control
single phase
Input voltage:AC 45V-280V/60V-280V/95V-280V
Input frequency:50/60Hz
Output voltage:220V+/-10%
Protection functions: over voltage, overload, over temperature, low voltage, time delay
Time delay:3-5sec short time,3-7min long time
Efficiency:＞90%
Transformer:copper/copper with aluminum
Display:LED display
Operating temperature:0~40℃
Storage temperature:-15℃~45℃
Operating Relative humidity:10%RH~102%RH
LCD Digital Display
Features:
1. Relay/microprocessor control(CPU)
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type
+86-577-86666801/86666802
bxst03@bao-xiang.com
1.Product Features
1. Relay/microprocessor control(CPU)
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type
4. Automatic voltage regulation
5. Display:input and output voltage meter display/LED digital meter
6. Protection functions: overvoltage, overload, over temperature, low voltage, time delay
7. Waveform distortion: no additional waveform distortion
8. Dielectric strength: 1500V/1min
9. Insulation resistance≥2MΩ
2.Product Specification
|
BX-VRD10 |
|
|
Power |
8000/10000/12000W |
|
Input voltage |
AC 45V-280V/60V-280V/95V-280V |
|
Input frequency |
50/60Hz |
|
Output voltage |
220V+/-10% |
|
Time delay |
3s short time, 180s long time |
|
Efficiency |
>90% |
|
Phase |
single phase |
|
Operating temperature |
0-40℃ |
|
Storage temperature |
-15℃-45℃ |
|
Operating relative humidity |
10%RH-102%RH |
|
Customize option for specification and availability please contact BXST |
|
3.Dimension and weight
|
Model |
QTY/CTN |
Product size(cm) |
MEAS(cm) |
N.W.(kg) |
Container20(PCS) |
|
BX*-VRD10 |
4 |
24*12.5*15.5 |
55*30*21 |
4.8 |
3200 |
