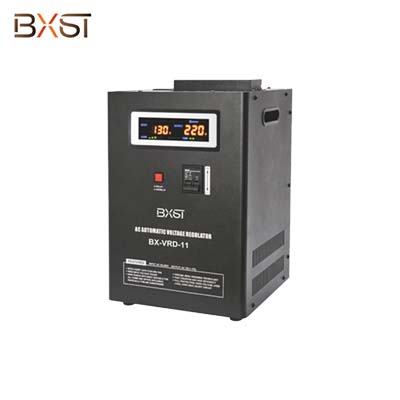

BX-VRD11 AC Automatic Voltage Regulator for Home

BX-VRD11 AC Automatic Voltage Regulator for Home

Brand: BXST
Model Number: BX-VRD11
servo motor control
single phase
Input voltage:AC 45V-280V/60V-280V/95V-280V
Input frequency:50/60Hz
Output voltage:220V AC
Output precision:220V±3%
Protection functions: over voltage, overload, over temperature, low voltage, time delay
Time delay:3-5sec short time,3-7min long time
Efficiency:>90%
Transformer:copper/copper with aluminum
Display:LCD display
Operating temperature:0~40℃
Storage temperature:-15℃~45℃
Operating Relative humidity:10%RH~102%RH
Features:
1. Relay/microprocessor control(CPU)
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type

1.Product Feature


1.    Relay/microprocessor control(CPU)

2.    Wide range voltage regulation

3.    Technology: classis series, EI transformer or toroidal transformer, relay type

4.    Automatic voltage regulation

5.    Display:input and output voltage meter display/LED digital meter

6.    Protection functions: overvoltage, overload, over temperature, low voltage, time delay

7.    Waveform distortion: no additional waveform distortion

8.    Dielectric strength: 1500V/1min

9.    Insulation resistance≥2MΩ


2.Product Specification


BX-VRD11

Power

5000W

Input voltage

AC 45V-280V/60V-280V/95V-280V

Input frequency

50/60Hz

Output voltage

220V AC/110V AC

Output precision

220V+/-8%, 110V+/-10%

Time delay

Short Delay:3-5sec  Long Delay :3-7min

Efficiency

>90%

Operating temperature

0-40℃

Storage temperature

-15℃-45℃

Operating relative humidity

10%RH-102%RH

Customize option for specification and availability please contact BXST


3.Dimension and weight


Model

QTY/CTN

Product size(cm)

MEAS(cm)

N.W.(kg)

Container20(PCS)

BX-VRD11

2

25.5*20.5*34

52*40*34

13.7

1180
