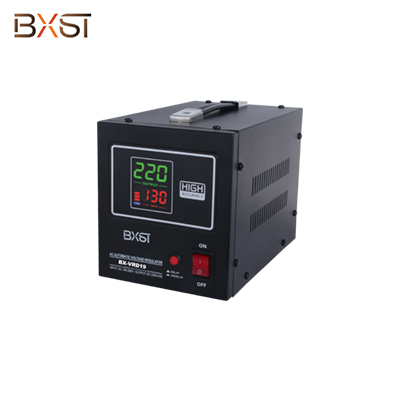

BX-VRD19 High Quality LED Display Voltage Stabilizer

BX-VRD19 High Quality LED Display Voltage Stabilizer

Brand: BXST
Model Number: BX-VRD19
Control: Relay Control
Phase: Single Phase
Input voltage:AC 100V-260V/130V-250V
Input frequency:50/60Hz
Output voltage:220V AC

1.Product Features



1.    Relay/microprocessor control(CPU)

2.    Wide range voltage regulation

3.    Technology: classis series, EI transformer or toroidal transformer, relay type

4.    Automatic voltage regulation

5.    Display:input and output voltage meter display/LED digital meter

6.    Protection functions: over voltage, over load, over temperature, low voltage, time delay

7.    Waveform distortion: no additional waveform distortion

8.    Dielectric strength: 1500V/1min

9.    Insulation resistance≥2MΩ



2.Product Specification



BX-VRD19

Power

500/1000/1500W

Input voltage

140-260V/100-260V

Input frequency

50/60Hz

Output voltage

220V AC/110V AC

Output precision

220V+/-3%, 110V+/-6%

Time delay

 short time, 180s long time

Efficiency

>90%

Load power factor

0.8

Phase

single phase

Operating temperature

0-40℃

Storage temperature

-15℃-45℃

Operating relative humidity

10%RH-102%RH

Customize option for specification and availability please contact BXST





3.Dimension and weight



Model

QTY/CTN

Product size(cm)

MEAS(cm)

N.W.(kg)

Container20(PCS)

BX-VRD19

4

24*12.5*15.5

55*30*21

4.8

3200
