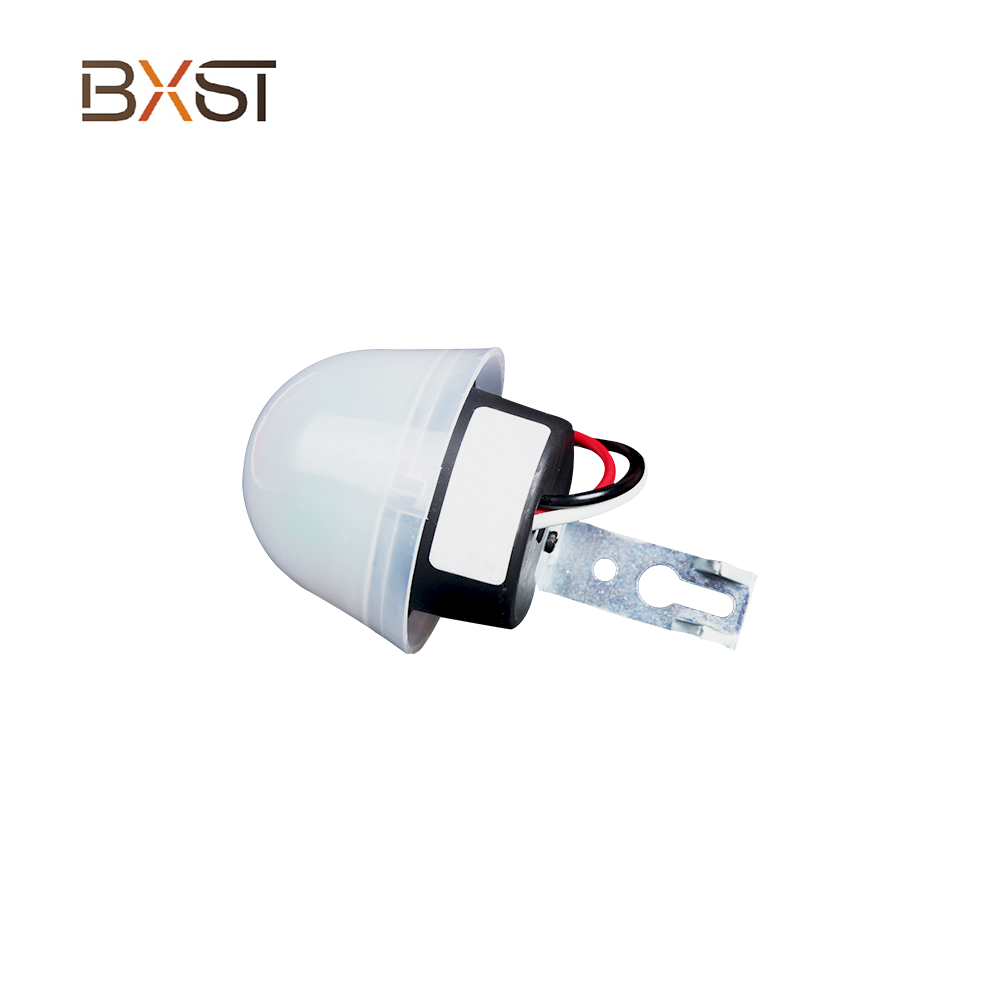

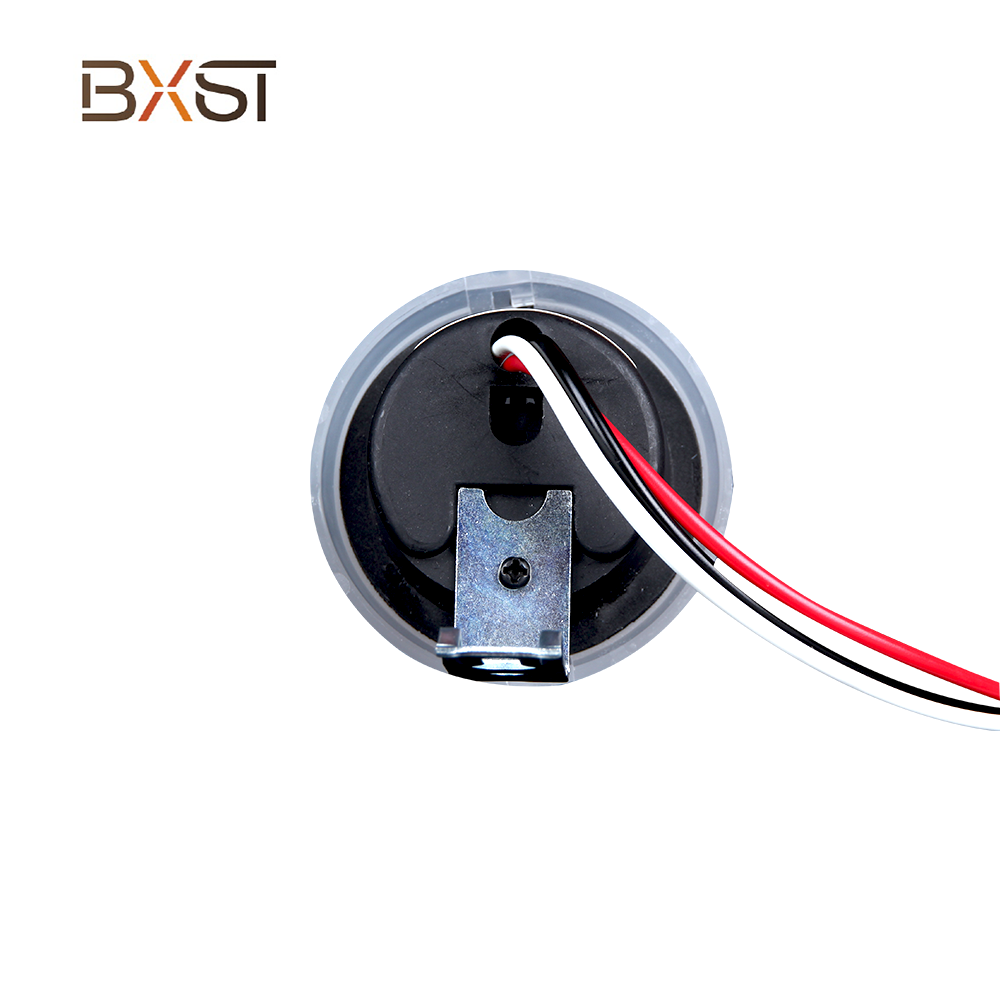

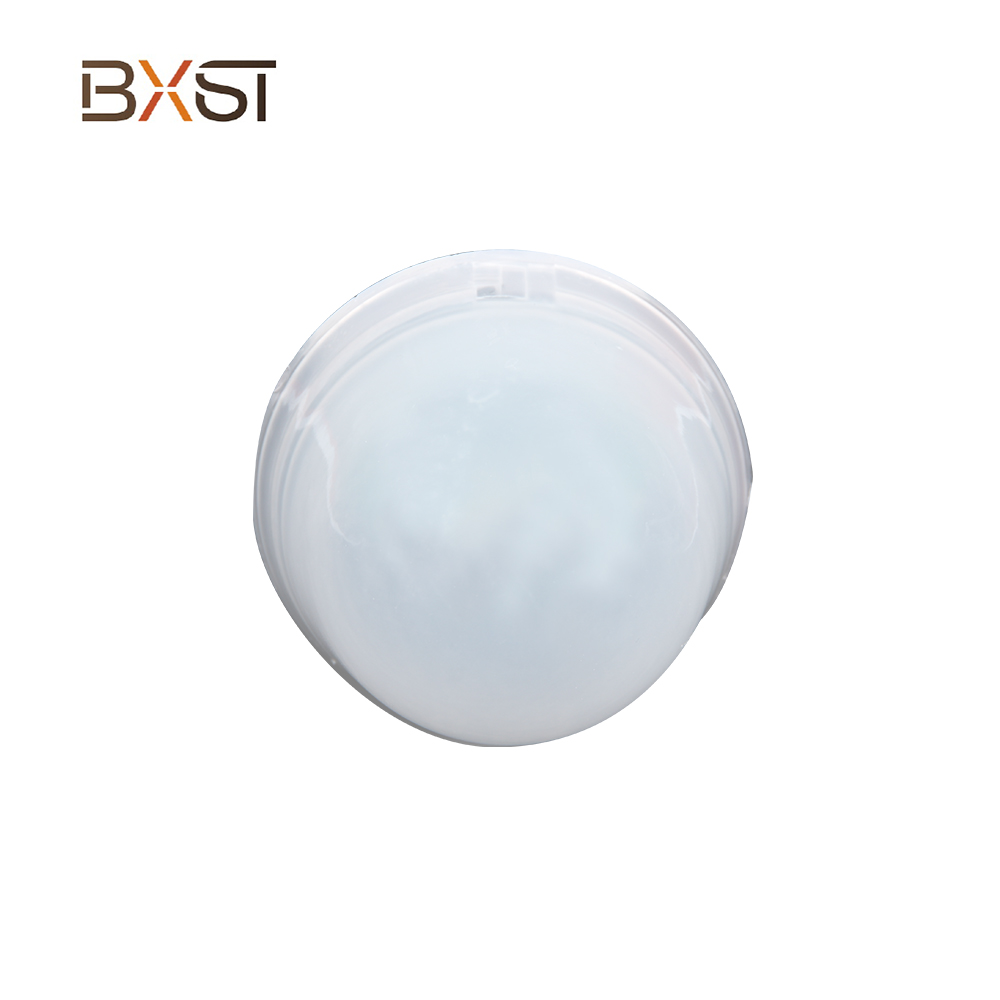

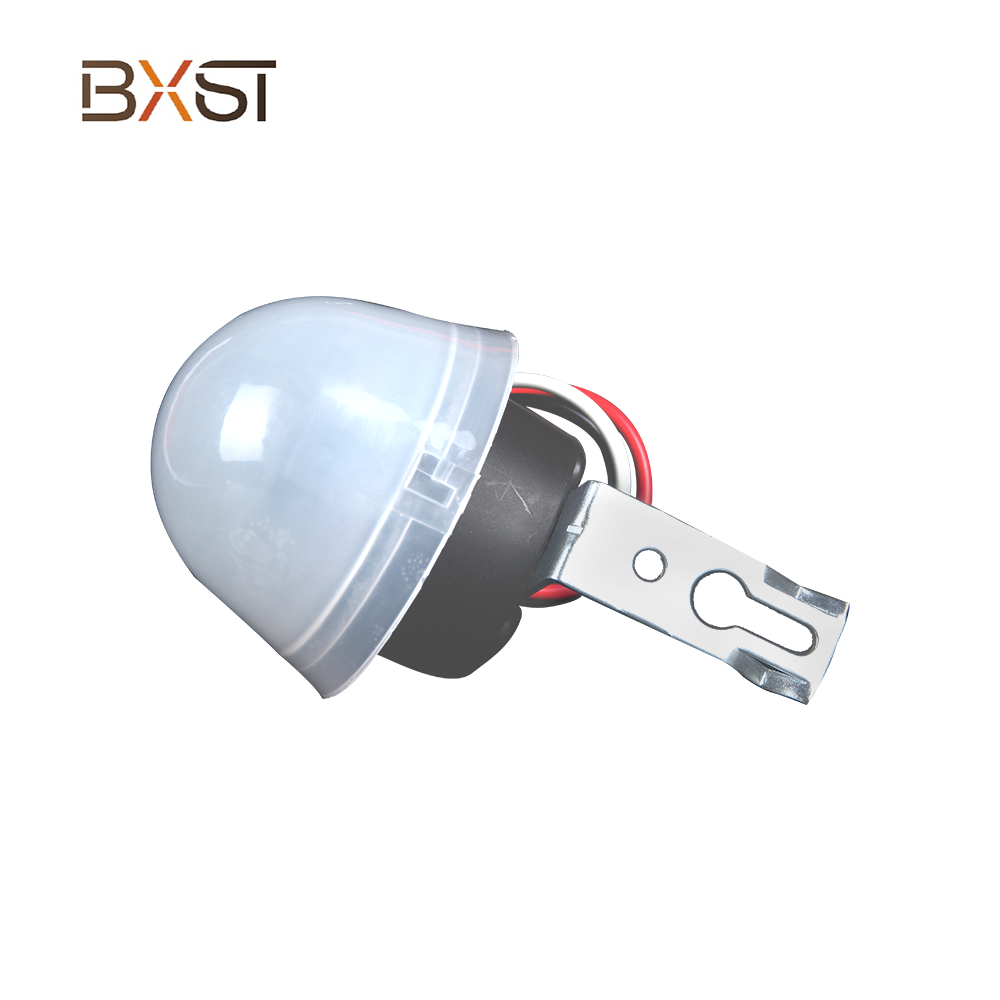

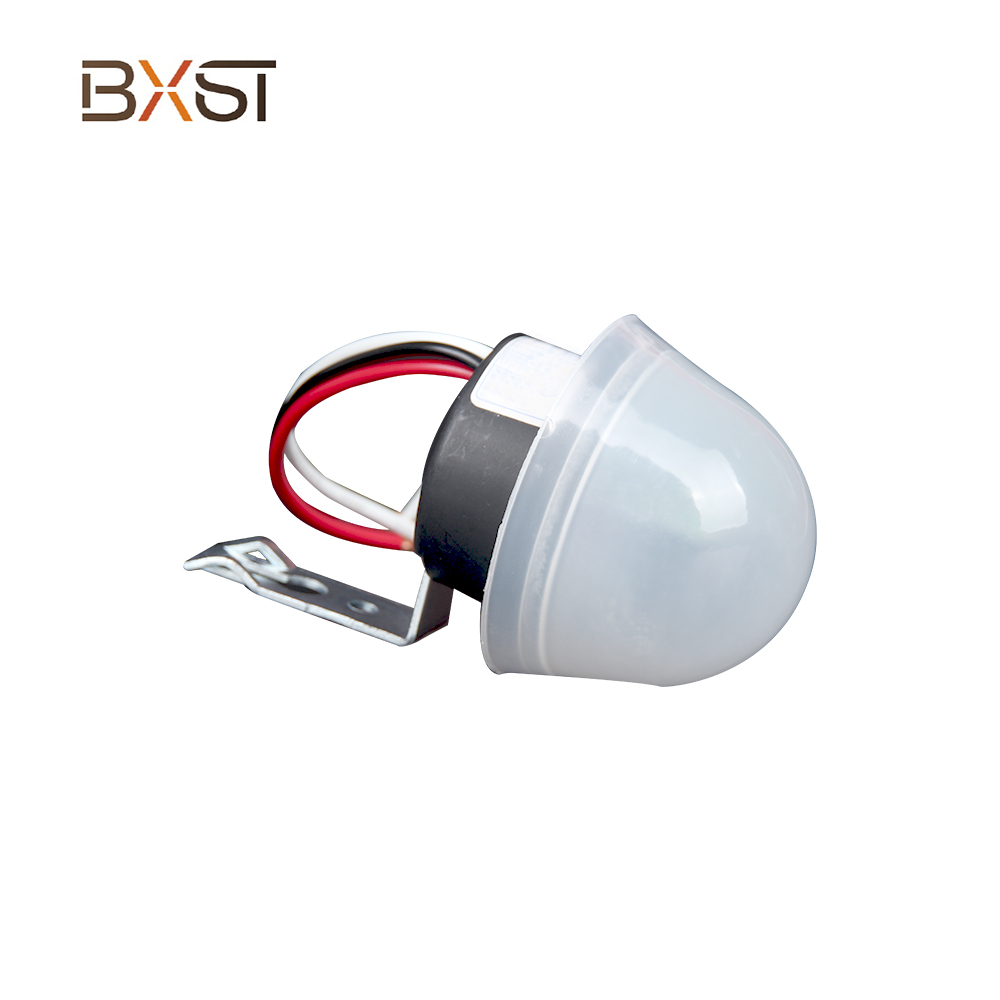

BX-SL002 Waterproof Automatic light control street lamp Switch

  • BX-SL002 Waterproof Automatic light control street lamp Switch
  • BX-SL002 Waterproof Automatic light control street lamp Switch
  • BX-SL002 Waterproof Automatic light control street lamp Switch
  • BX-SL002 Waterproof Automatic light control street lamp Switch
  • BX-SL002 Waterproof Automatic light control street lamp Switch
BX-SL002 Waterproof Automatic light control street lamp Switch

voltage:22CV
electricity:10A 50hz
power:White woven light less than 1000; Fluorescent lamp less than 400W; LED less than 600W
Net weight: 65g
use :It can be customized to turn off automatically during the day and turn on automatically at night

Features

1. with internal environment illumination automatic detection circuit,sutomatically shut down during the day, automatically open in the evening.

2. the  conventional three-wire system(customizable four wire).compatible with a variety of load impedance,sensibility,capacitive lamp.

3. the comtrol object for LED lamp, energy-saving lamp,flourescent lamp, the lamp of incandescent lamp,exhaust,etc.

4. with 5-10 seconds delay when environmental conditions change functions,such as leaves and flying car lighting,lighting,short time delay protection function.


Application
Widely used in street lights, highways, gardens, airports, schools, factories, farms and other places.

Warning

Do not install in the light, need to install in the sun, above the light.



Specifications Voltage  Ated load Working temperature Open circuit losse
SL002-Three Line

AC165-220V、AC/DC12V、

DC24V、DC36V、DC48V、DC60V


3A/6A/10A/16A -40℃~70℃ <1w<1watts
SL002-Four Line

AC165-220V、AC/DC12V、

DC24V、DC36V、DC48V、DC60V

3A/6A/10A/16A
-40℃~70℃
<1w<1watts
