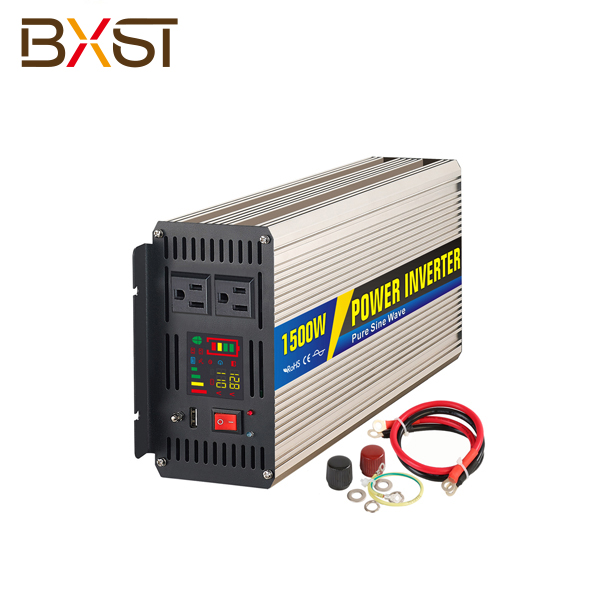

BX-IT002-1500W DC AC Pure Sine Wave Inverter With LED Digital Display

rated power

1500W

Peak power

3000W (short time)

Input voltage

12VDC

24VDC

48VDC

The output voltage

110VAC±5%

220VAC±5%

110VAC±5%

220VAC±5%

110VAC±5%

220VAC±5%

USB port

5V 1A

frequency

50Hz±3 or 60Hz±3

Output waveform

Pure sine wave

Soft start

YES

Total harmonic distortion

THD<3% (Linear Load)

effectiveness

94% max

No-load current

0.6A

0.3A

0.1A

DC input range

10-15.5V

20-31V

40-61V

Input under voltage alarm

10.5±0.5V

21±0.5V

42±1V

Input under voltage protection

10±0.5V

20±0.5V

40±1V

Input under voltage recovery

13±0.5V

24±0.5V

48±1V

Input over voltage protection

15.5±0.5V

31±0.5V

61±1V

Input over voltage recovery

14.8V±0.5V

29V±0.5V

59V±1V

Cooling method

Smart fan

Protective function

Under voltage protection, over voltage protection, overload protection, over temperature protection, short circuit protection

Operating temperature

-10 ° C - +50 ° C

Product Size

34.7*16.5*8.7cm (L×W×H)

Color box size

45.6*20.6*12.2cm (L×W×H)

Carton size

49*46*31.5cm / 4pieces

Net weight / only

4.3kg

Gross weight/box

21KGS

Packing

Kraft packaging

Warranty

2  years
