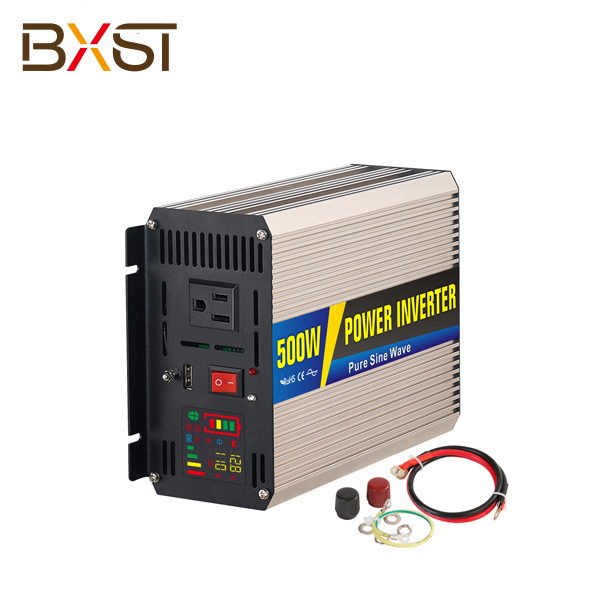

BX-IT002-500W DC AC Single Phase Pure Sine Wave Inverter with LED Digital Display

BX-IT002-500W DC AC Single Phase Pure Sine Wave Inverter with LED Digital Display

Pure sine wave inverter 500W offering superior quality true sine wave power, it is designed to operate popular power tools and inductive loads. Connect 500W pure sine wave inverter with battery terminals, whereaby enables to give AC power for your appliances, the AC output waveform is even better than the power supplied by your utility.

Pure sine wave inverter 500W offering superior quality true sine wave power, it is designed to operate popular power tools and inductive loads. Connect 500W pure sine wave inverter with battery terminals, then you can get AC power for your appliances, the AC output waveform is even better than the power supplied by your utility.


Technical Parameter:


rated power

500W

Peak power

1000W (short time)

Input voltage

12VDC

24VDC

48VDC

The output voltage

110VAC±5%

220VAC±5%

110VAC±5%

220VAC±5%

110VAC±5%

220VAC±5%

USB port

5V 1A

frequency

50Hz±3 or 60Hz±3

Output waveform

Pure sine wave

Soft start

YES

Total harmonic distortion

THD<3% (Linear Load)

effectiveness

94% max

No-load current

0.6A

0.3A

0.1A

DC input range

10-15.5V

20-31V

40-61V

Input under voltage alarm

10.5±0.5V

21±0.5V

42±1V

Input under voltage protection

10±0.5V

20±0.5V

40±1V

Input under voltage recovery

13±0.5V

24±0.5V

48±1V

Input over voltage protection

15.5±0.5V

31±0.5V

61±1V

Input over voltage recovery

14.8V±0.5V

29V±0.5V

59V±1V

Cooling method

Smart fan

Protective function

Under voltage protection, over voltage protection, overload protection, over temperature protection, short circuit protection

Operating temperature

-10 ° C - +50 ° C

Product Size

20.2*15*7.8cm (L×W×H)

Color box size

28.6*20.3*13*9.8cm (L×W×H)

Carton size

63*34*38.5cm / 10pieces

Net weight / only

2kg

Gross weight/box

24KGS

Packing

Kraft packaging

Warranty

2  years
