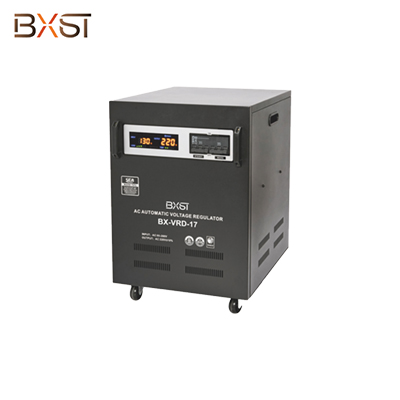

BX-VRD17 Large Power Transformer Stabilizer Voltage Regulator

The single-phase voltage regulator is composed of a contact type auto-regulator, a servo motor, and an automatic control circuit. The working principle is: when the grid voltage is unstable or the load changes, the automatic sampling control circuit sends out a signal and drives the servo motor to adjust the position of the auto-coupler carbon brush, so that the output voltage is adjusted to the rated value and reaches a steady state with overvoltage. , under voltage, overload, bypass, lightning protection and other protection functions and waveforms are not distorted, reliable performance, long-term operation and so on. It can ensure the normal operation of the electrical equipment.

1.Product Features

1.    Relay control

2.    Wide range voltage regulation

3.    Technology: classis series, EI transformer or toroidal transformer, relay type

4.    Automatic voltage regulation

5.    Display: output voltage display

6.    4 LED indicators for power, AVR protection, overload protection and overvoltage protection

7.    2 buttons for selecting delay time

8.    6 universal output sockets

9.    Insulation resistance≥2MΩ

2.Product Specification

3.Dimension and weight
