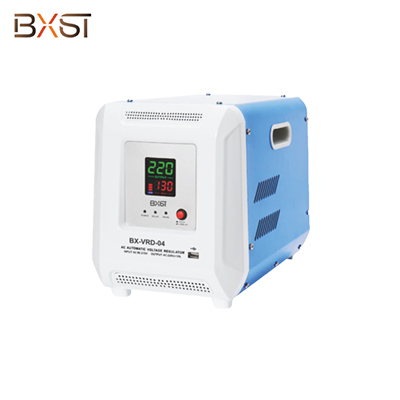

BX-VRD04 High Automatic Voltage Stabilizer Regulator

BX-VRD04 High Automatic Voltage Stabilizer Regulator

Brand: BXST
Model Number: BX-VRD04
Control: Relay Control
Phase: Single Phase
Input voltage:AC 130V-270V/95V-280V
Input frequency:50/60Hz
Output voltage:220V AC
Output precision:220V±3%, 110V±6%
Protection functions: over voltage, overload, over temperature, low voltage, time delay
Time delay:3’s short time,180’s long time
Efficiency:>90%
Transformer:copper/copper with aluminum
Display:LED display
Operating temperature:0~40℃
Storage temperature:-15℃~45℃
Operating Relative humidity:10%RH~102%RH
LCD Digital Display
Features:
1. Relay/microprocessor control(CPU)
2. Wide range voltage regulation
3. Technology: classis series, EI transformer or toroidal transformer, relay type

1.Product Features


1.    Relay/microprocessor control(CPU)

2.    Wide range voltage regulation

3.    Technology: classis series, EI transformer or toroidal transformer, relay type

4.    Automatic voltage regulation

5.    Display:input and output voltage meter display/LED digital meter

6.    Protection functions: overvoltage, overload, over temperature, low voltage, time delay

7.    Waveform distortion: no additional waveform distortion

8.    Dielectric strength: 1500V/1min

9.    Insulation resistance≥2MΩ


2.Product Specification


BX-VRD04

Power

3000/5000/8000/10000/15000/20000W

Input voltage

AC 130V-270V/95V-280V

AC 22Input frequency

50/60Hz

Output voltage

220V AC/110V AC

Output precision

220V+/-3%, 110V+/-6%

Time delay

3s short time, 180s long time

Efficiency

>90%

Load power factor

0.8

Phase

single phase

Operating temperature

0-40℃

Storage temperature

-15℃-45℃

Operating relative humidity

10%RH-102%RH

Customize option for specification and availability please contact BXST



3.Dimension and weight



Model

QTY/CTN

Product size(cm)

MEAS(cm)

N.W.(kg)

Container20(PCS)

BX-VRD04

4

24*12.5*15.5

55*30*21

4.8

3200
