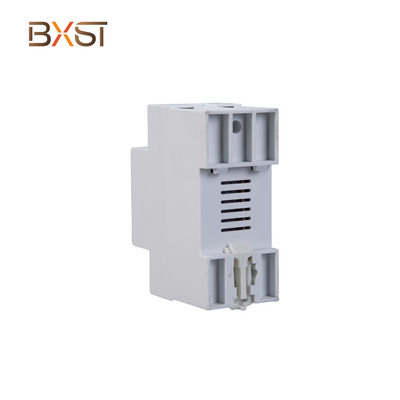

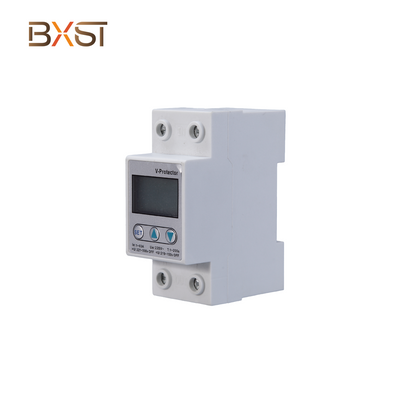

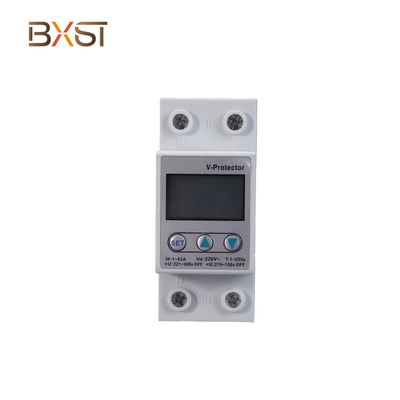

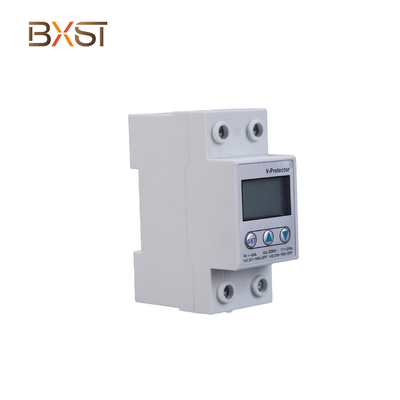

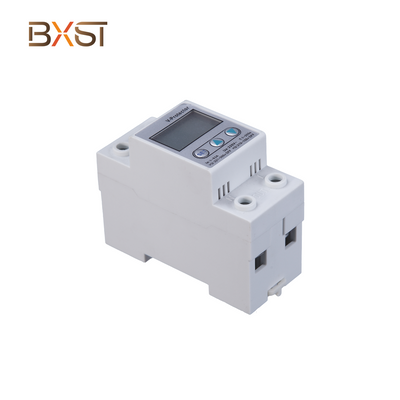

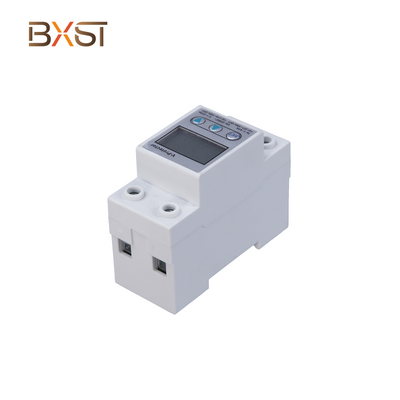

Bx-V604-D Over and Under Wiring Voltage Protector
Rated voltage: 220VAC
Rated current :1-63A
Over or under adjustable range: 230V-300V,
Overvoltage default value 275V recovered value: 260±5V
Adjustable range of undervoltage: 140V-210V,
Undervoltage default value 165V recovered value: 180±5V
Adjustable delay time: 1-90s
Default value: 10 seconds
+86-577-86666801/86666802
bxst03@bao-xiang.com
Product Parameters
| Item | Value |
| Warranty | 3months-1year |
| Certification | CE |
| Customized | Yes |
| Place of Origin | zhejiang, China |
| Brand Name | BXST |
| Model Number | BX-V604-D |
| WIFI | No |
| Rated voltage | 220V |
| Frequency | 50/60Hz |
| Rated current | 63A |
| Time delay is adjustable | 1-90S |
| Under Voltage | AC165V±5 |
| Over Voltage | AC275V±5 |
Product Details
FAQ
Q:Are you a factory?
A:Yes,we are a factory which has been focusing on research and development and manufacturing all kinds of socket for 10 years.
Q:What if there is some problems with your products after I receive the bulk?
A:The rate of our qualified products is 99%-100%.If some products are not working when you receive them,we will supply you the same quantity
qualified products.
Q:What is the material of your products?
A: The shell material is ABS, PC, PA66, V0 Flame-retardant level. Hardware is 0.7 mm thick of beryllium bronze. Our company uses relay with
high quality which is bought from Sky-Wave and Loose Joy. All chips are imported from Taiwan and United States.
Q:How can I get some samples?
A:All the sample is available in stock, we can send you free sample if you can pay the express fee.
Q:How does your factory do regarding quality control?
A:We have professional QC department, we inspect all steps from the purchase of the materials to the departures of products from our factory
according to the standard test. We always attach great importance on quality control from the beginning to the end . Our factory has gained
CE.FCC.Rohs ceritificate.
Q:When you ship my order?
A:Normally 30to45days after receiving your payment,but it can be negotiated based on production schedule.
Q: How long is the product warrenty period?
A:Every products has the patent of the original, we promise that the products have two year warrenty, but the counterfeit products
are not included in the warrenty period
Q: How to identify the quality goods is BXST?
A:We all have anti-counterfeiting qr code on each PCB circuit boards
If you want to know more, please contact us, we will get back to you as soon as possible!
