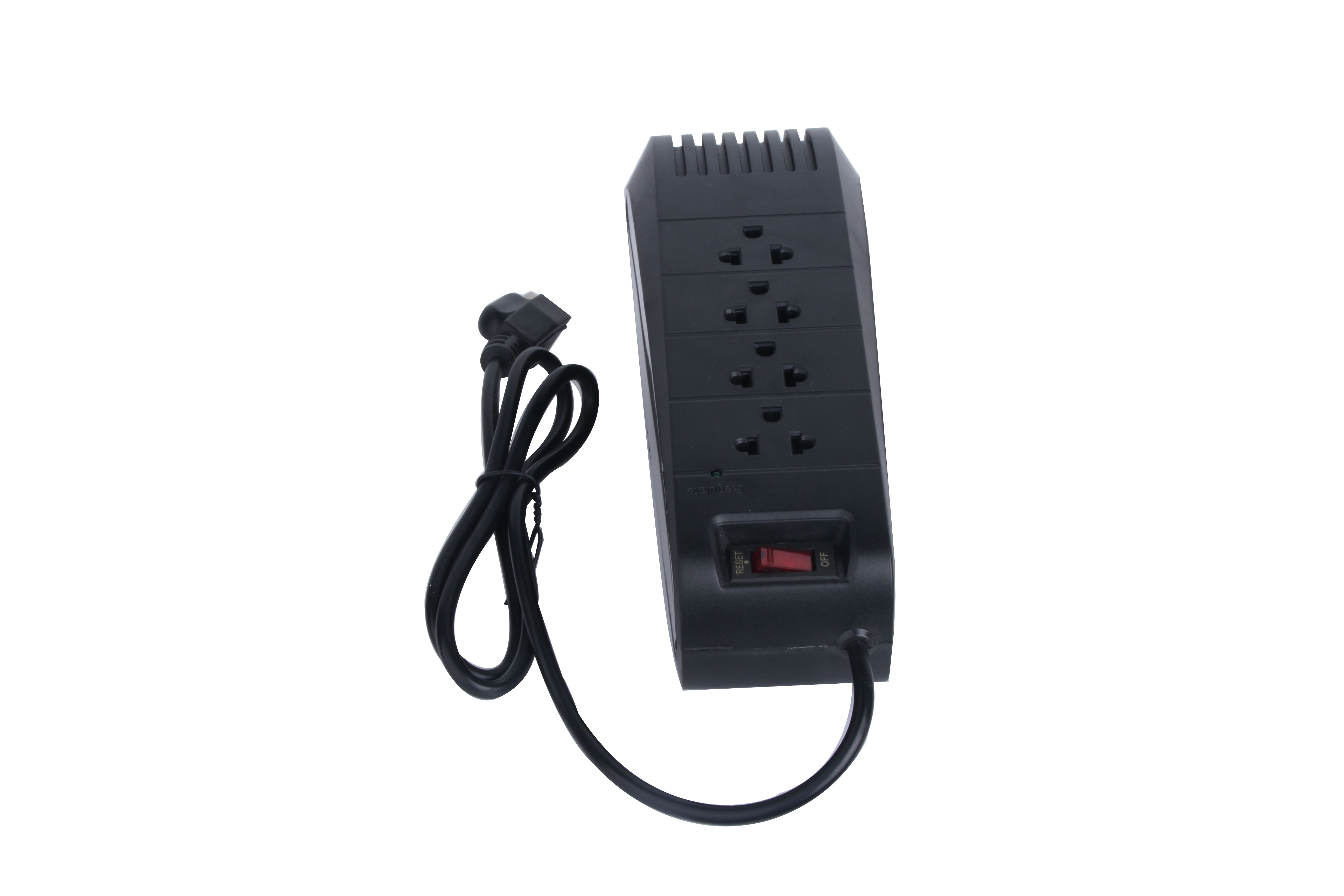

Brand: BXST
Model Number: BX-ARS-US4
Relay control
Transformer:AL 80%
Input:140-260V/90-130V
Output:220V/110V AC
Precision 220V:±8%
Precision 110V:±10%
3LED indicators
Frequency:50/60Hz
Short delay time：3s
Long delay time：180s
1. Relay control
2. Wide range voltage regulation
3. Technology: classis series, EI transformer, relay type
+86-577-86666801/86666802
bxst03@bao-xiang.com
1.Product Features
1. Relay control
2. Wide range voltage regulation
3. Technology: classis series, EI transformer, relay type
4. Automatic voltage regulation
5. 3 LED indicators for power, high voltage, low voltage
6. 8 output USA sockets
7. Waveform distortion: no additional waveform distortion
8. Insulation resistance≥2MΩ
2.Product Specification
|
BX-ARS-US4-250/300/350W |
|
|
Input voltage |
90-130V |
|
Input frequency |
60Hz |
|
Output voltage |
110V AC |
|
Output precision |
110V+/-10% |
|
Time delay |
Delay/un-delay(180/3 seconds selectable) |
|
Efficiency |
>90% |
|
Load power factor |
0.8 |
|
Phase |
single phase |
|
Operating temperature |
0-40℃ |
|
Storage temperature |
-15℃-45℃ |
|
Operating relative humidity |
10%RH-102%RH |
|
Customize option for specification and availability please contact BXST |
|
3.Dimension and weight
|
Model |
QTY/CTN |
MEAS(cm) |
G.W.(kg) |
N.W.(kg) |
Container20(PCS) |
|
BX-ARS-US4-250/300/350W |
12 |
49*28*29 |
15.3 |
14.5 |
8140 |
