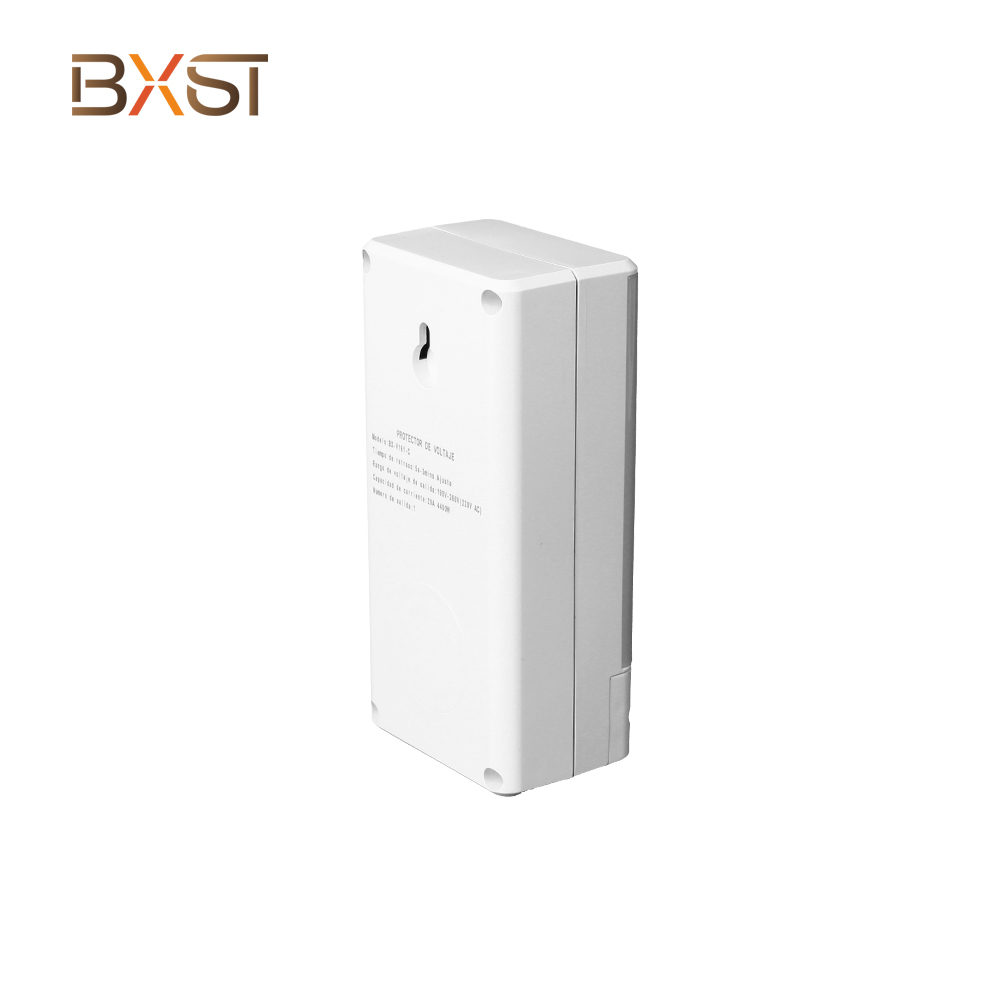

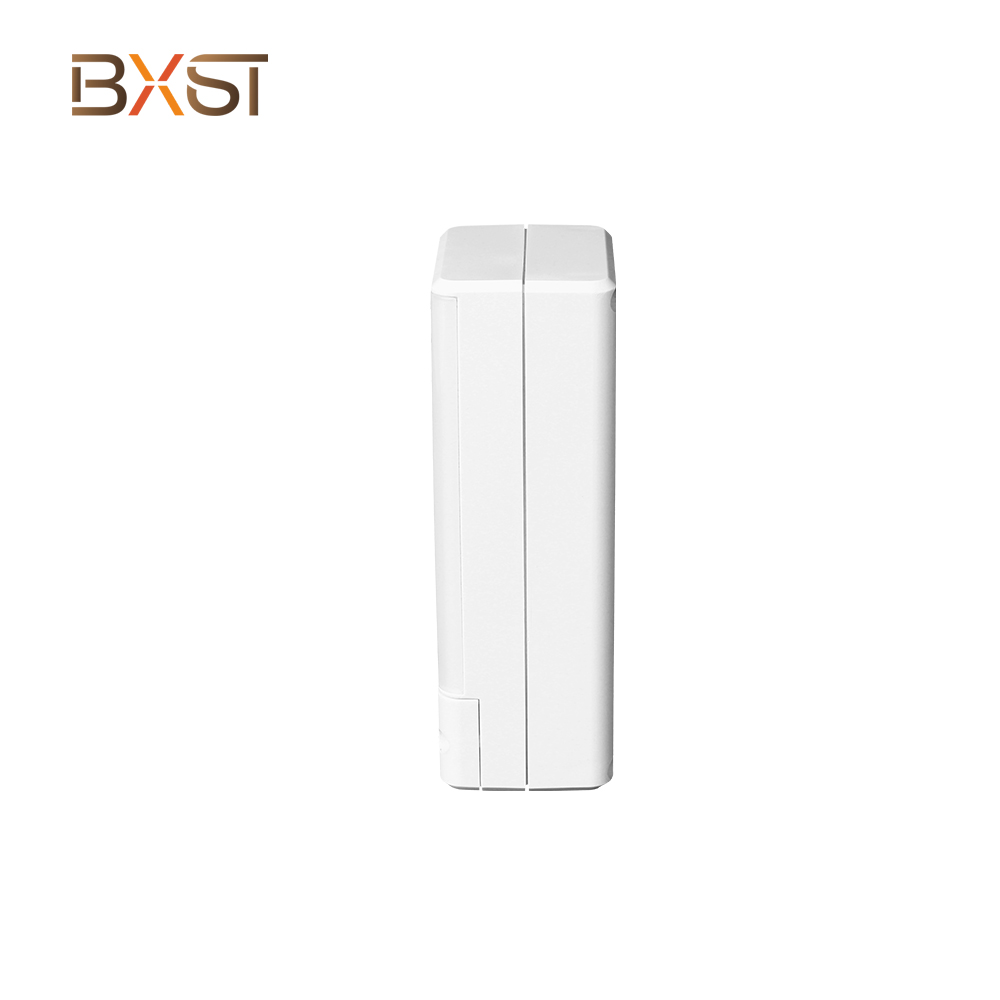

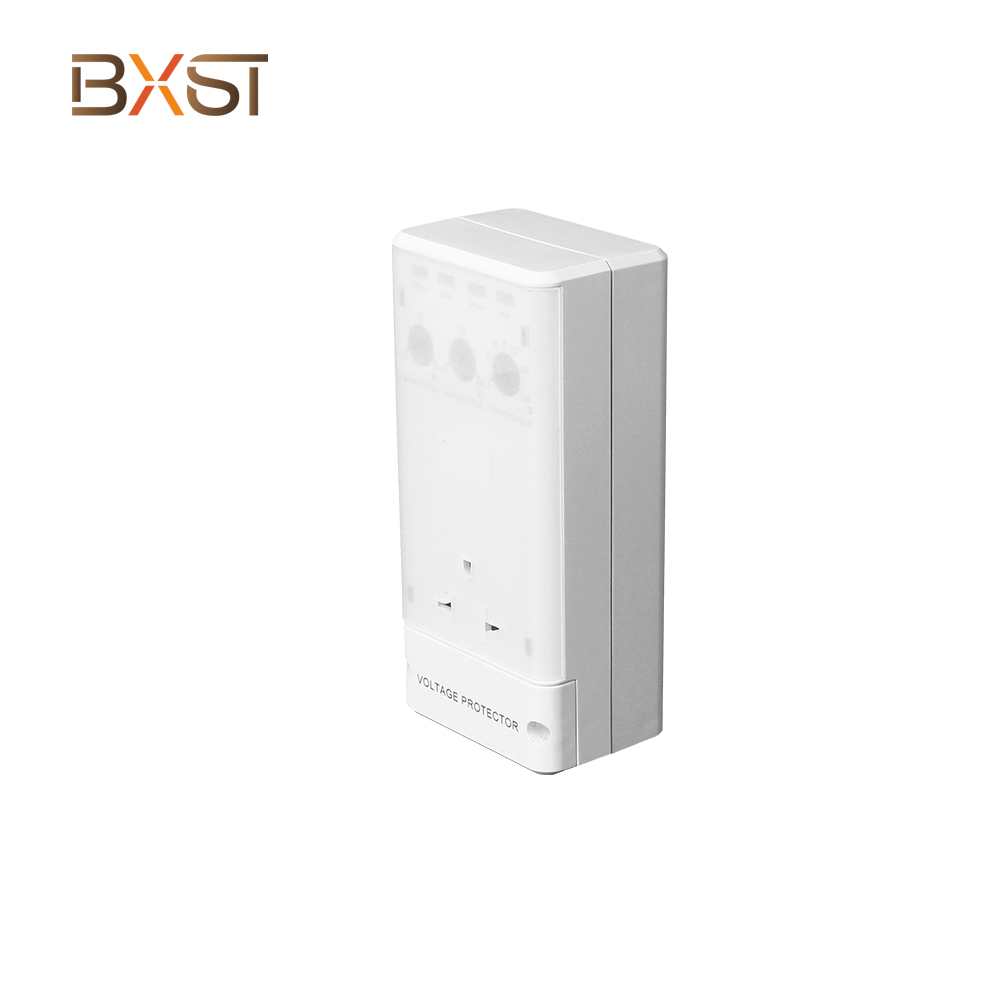

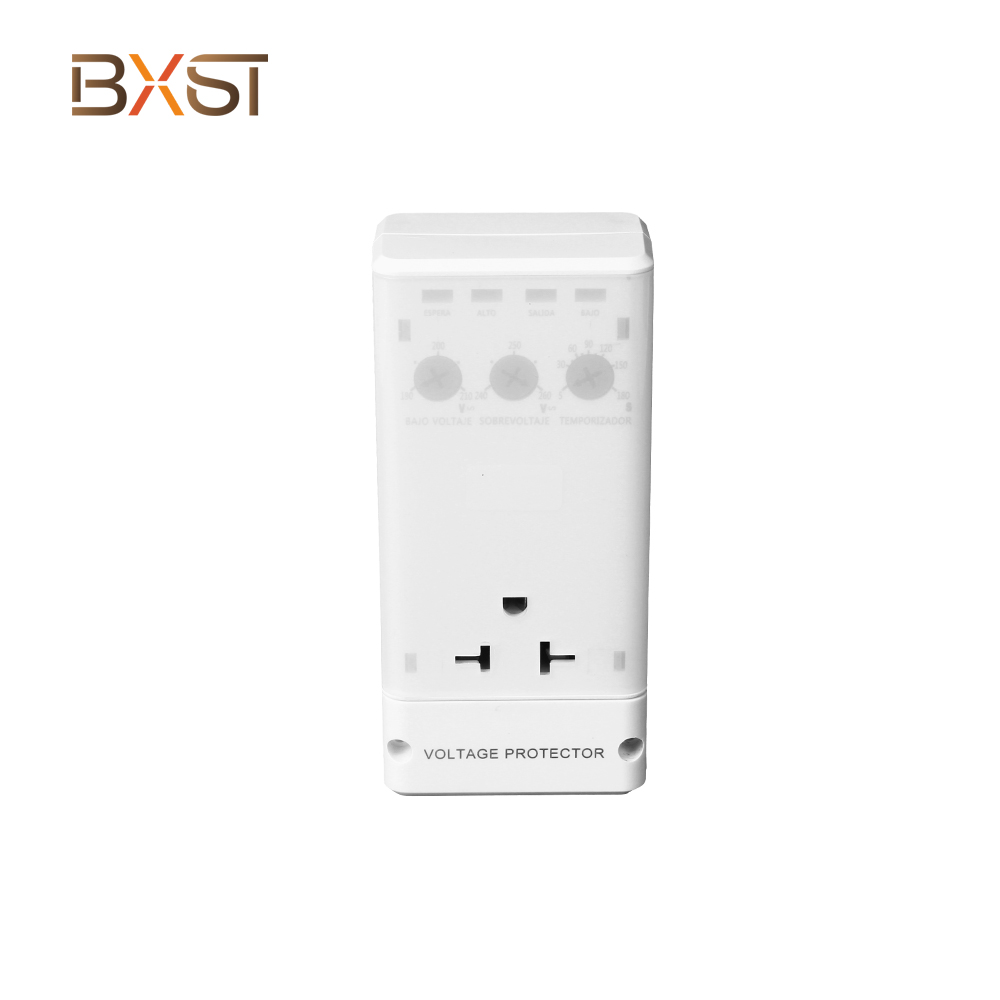

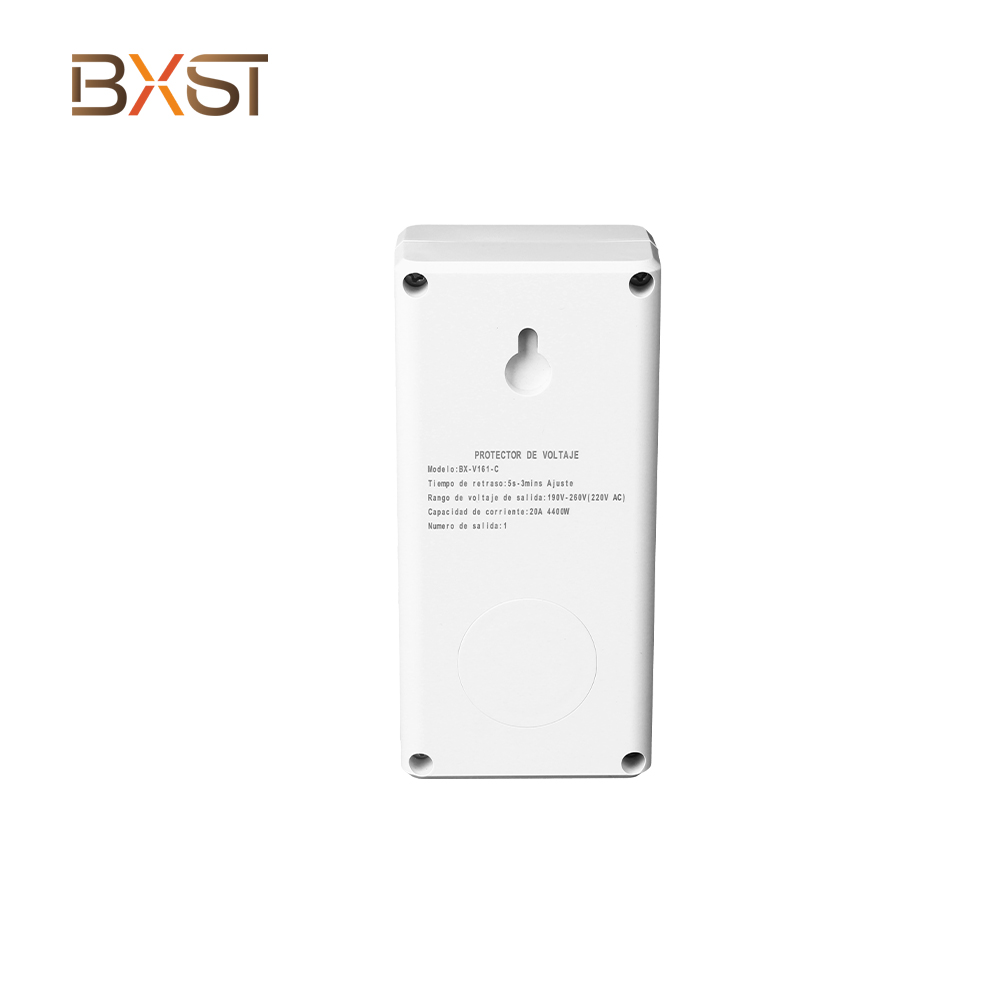

BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,

  • BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,
  • BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,
  • BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,
  • BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,
  • BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,
BX-V161-P Tv air conditioner voltage Protector Adjust Time Delay Power Surge Protector,

Brand: BXST
Working voltage: 120V/220VAC
Frequency: 50HZ-60HZ
Under voltage: 90-110V(120VAC)/170-190(220VAC)adjustable
Over voltage: 120-140V(120VAC)/240-260(220VAC)adjustable
Working current: 30A 19600BTU/36000BTU

BX-V161-P is hot sold in South America. It’s used for TV, PC, refrigerator and home appliance which power is less than 6600W.


1.Product Specification

Place of Origin
China
Zhejiang
Brand Name
BXST
Model Number
BX-V161-P
Usage
power
Phase
Single Phase
Current Type
AC
Working voltage
120V/220VAC/50HZ-60HZ
Under voltage
90-110V(120VAC)/170-190(220VAC)adjustable
Over voltage
120-140V(120VAC)/240-260(220VAC)adjustable
Working current
30A 19600BTU/36000BTU
Delay time
5sec-180sec(adjustable)
Temperature
-5℃~+55℃
Size
58*40.3*121mm
Material
Flame retardant PC
Weight
164g


2.Product Features


      1.Over/Under Voltage Protection: When the voltage exceeds the limit, it will automatically cut off the power to prevent the electrical appliances being damaged by the too low or too high voltage.

      2.Automatic Voltage Identification:When it is identified 120V, it will work at the protection range of 120V--90V~165V,when it is identified 220V, it will work at the protection range of 220V--165V~260V automatically ,universal product.

      3.Adjustable threaded bolt: Users can adjust the high/low voltage and delay time to meet their needs.

      4.Many terminals: terminal can carry 30A, plug can carry 15A.

      5.Flame retardant material: Be able to reach the experimental standards of level test of UL94-5VA..


3.Warning


      1.The total power of connected electrical equipment shall not exceed therated power.

      2.Do not use this product in damp or not ventilated environment.

      3.Non-professionals do not open, change, repair the product.

      4.Poor connection of the front terminal or poor connection of the plugmay cause a danger.


FAQ




Q:Are you a factory?
A:Yes,we are a factory which has been focusing on research and development and manufacturing all kinds of socket for 10 years.

Q:What if there is some problems with your products after I receive the bulk?
A:The rate of our qualified products is 99%-100%.If some products are not working when you receive them,we will supply you the
same quantity qualified products.

Q:What is the material of your products?
A:  The shell material is ABS, PC, PA66, V0 Flame-retardant level. Hardware is 0.7 mm thick of beryllium bronze. Our company uses
relay with high quality which is bought from Sky-Wave and Loose Joy. All chips are imported from Taiwan and United States.

Q:How can I get some samples?
A:All the sample is available in stock, we can send you free sample if you can pay the express fee.

Q:How does your factory do regarding quality control?
A:We have professional QC department, we inspect all steps from the purchase of the materials to the departures of products from

our factory according to the standard test. We always attach great importance on quality control from the beginning to the end .

Our factory has gained CE.FCC.Rohs ceritificate.


Q:When you ship my order?
A:Normally 30to45days after receiving your payment,but it can be negotiated based on production schedule.

Q: How long is the product warrenty period?
A:Every products has the patent of the original, we promise that the products have two year warrenty, but the counterfeit products
are not included in the warrenty period

Q: How to identify the quality goods is BXST?
A:We all have anti-counterfeiting qr code on each PCB circuit boards


If you want to know more, please contact us, we will get back to you as soon as possible!
